VHA and SHA Material
Introducing the latest innovation from Light Works

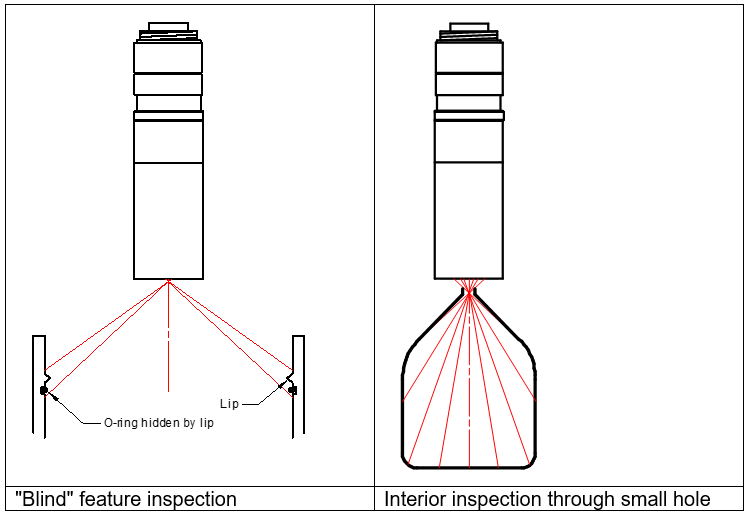

Very High Angle (VHA) and Super High Angle (SHA) patented Hyper-EyeTM hypercentric lenses for interior inspection tasks:

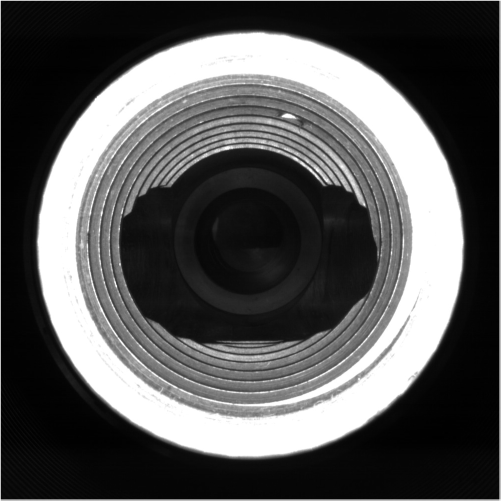

- Internal threads
- Bores

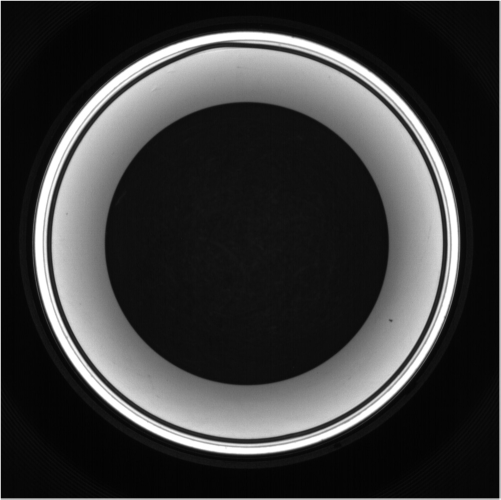

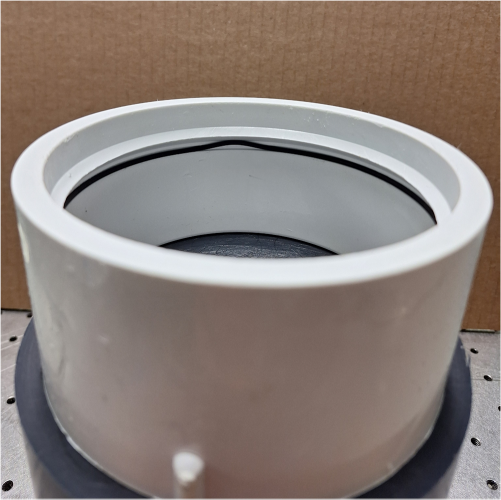

- Under ridges or lips
- Under shoulders
- Full interior view through tiny holes
The new adjustable aperture, adjustable focus VHA and SHA series of Hyper-EyeTM lenses can be used as borescopes or so-called "pinhole" lenses, but because of the external entrance pupil (Convergence Point or CP), even more applications are possible!

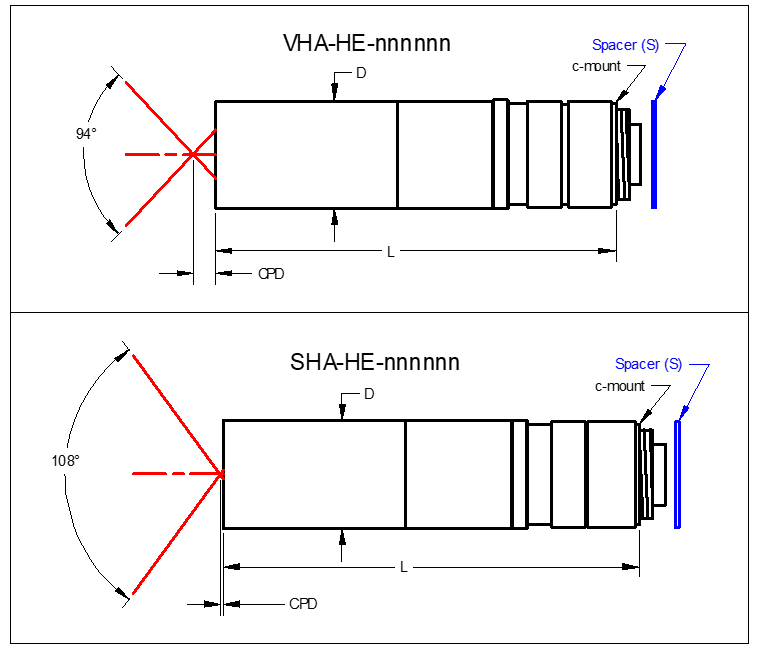

| VHA-HE-257508 |
VHA-HE-257512 |
VHA-HE-257516 |
|
| Max.View Angle |
94 deg. |
94 deg. |
94 deg. |
| Max. Image Diam. |
~2.4mm |
~3.7mm |
~5.0mm |
| CPD |
~6mm |
~6mm |
~6mm |
| D |
30.5mm |
30.5mm |
30.5mm |
| L |
113mm |
111.4mm |
102.0mm |
| S (recommended) |
0.5mm |
1.0mm |
1.5mm |
| SHA-HE-257508 |
SHA-HE-257512 |
SHA-HE-257516 |
|
| Max.View Angle |
108 deg. |
108 deg. |
108 deg. |
| Max. Image Diam. |
~2.4mm |
~3.7mm |
~5.0mm |
| CPD |
~0.5mm |
~0.5mm |
~0.5mm |
| D |
30.5mm |
30.5mm |
30.5mm |
| L |
119.2mm |
117.5mm |
108.1mm |
| S (recommended) |
0.25mm |
1.0mm |
1.5mm |
Contact Light Works by email for more information, and help with your application!
